Grinders
LIST
Die Grinder
KPT-3200
Collet Size
6/6.35 (mm)
Free Speed
23,000 RPM
Power
0.19 kW
Air Consumption
546 l/m
Dimension
L153xW36xH42 (mm)
Net Weight
0.41 kg
Air Inlet
1/4"
Die Grinder
KPT-3210
Collet Size
6/6.35 (mm)
Free Speed
20000 RPM
Power
0.19 kW
Air Consumption
546 l/m
Dimension
L160XW39XH76 (mm)
Net Weight
0.55 kg
Air Inlet
1/4"
Die Grinder
KPT-3220
Collet Size
6/6.35 (mm)
Free Speed
20000 RPM
Power
0.19 kW
Air Consumption
546 l/m
Dimension
L194XW39XH76 (mm)
Net Weight
0.56 kg
Air Inlet
1/4"
Die Grinder
KPT-22DG
Collet Size
6/ 6.35(mm)
Free Speed
28000 RPM
Power
0.19 kw
Air Consumption
465 l/m
Dimension
L120×W33×H50 (mm)
Net Weight
0.3 kg
Air Inlet
1/4"
Die Grinder
KPT-24DG
Collet Size
6/ 6.35(mm)
Free Speed
23000 RPM
Power
0.38 kW
Air Consumption
688 l/m
Dimension
L145×W40×H59 (mm)
Net Weight
0.54 kg
Air Inlet
1/4"
Die Grinder
KPT-26DG
Collet Size
6/ 6.35(mm)
Free Speed
21,000 RPM
Power
0.19 kW
Air Consumption
505 l/m
Dimension
L125xW33xH75 (mm)
Net Weight
0.45 kg
Air Inlet
1/4"
Die Grinder
KPT-1220S
Collet Size
6/6.35 (mm)
Free Speed
32000 RPM
Power
0.38 kW
Air Consumption
505 l/m
Dimension
L160×W32×H65 (mm)
Net Weight
0.39 kg
Air Inlet
1/4"
Die Grinder
KPT-1240S(Discontinued)
Collet Size
6/6.35 (mm)
Free Speed
21000 RPM
Power
0.38 kW
Air Consumption
667 l/m
Dimension
L164×W40×H73 (mm)
Net Weight
0.7kg
Air Inlet
1/4"
Die Grinder
KPT-28DGS
Collet Size
6/6.35 (mm)
Free Speed
3,800 RPM
Power
0.38 kW
Air Consumption
667 l/m
Dimension
L192xW39xH58
Net Weight
0.7kg
Air Inlet
1/4"

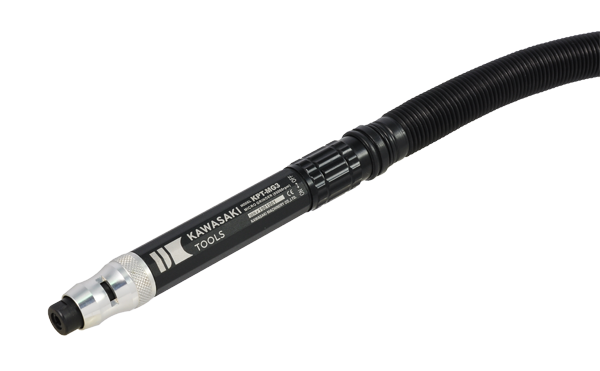

Micro Grinder
KPT-MG3
Collet Size
3 (mm)
Free Speed
60000 RPM
length
140 mm
Air Consumption
120 l/m
Net Weight
0.25 kg
Air Inlet
1/4"

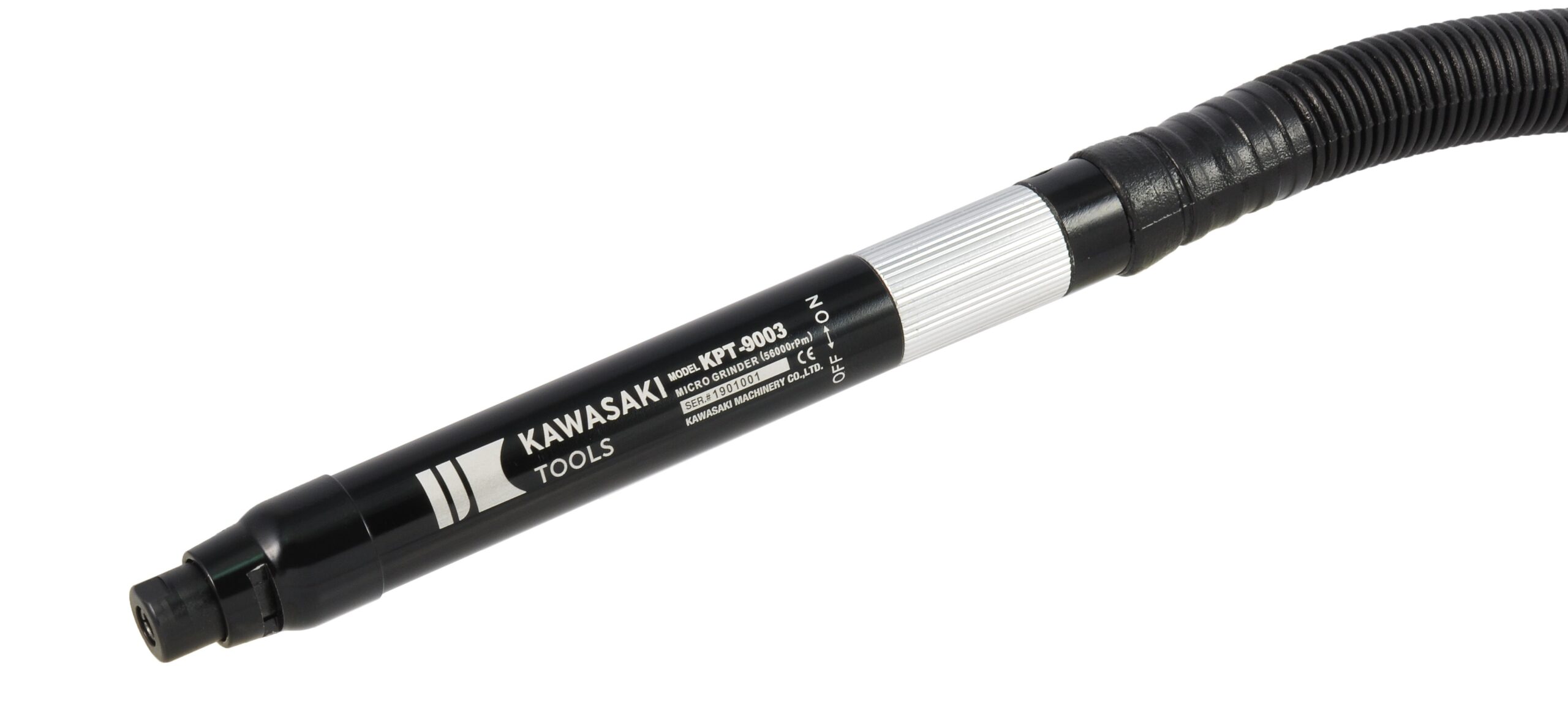

Micro Grinder
KPT-9003
Collet Size
3(mm)
Free Speed
56000 RPM
length
156 mm
Air Consumption
180 l/m
Net Weight
0,21 kg
Air Inlet
1/4"
4" Disc safety Lever
KPT-100AL
Disc Capa.
100×16×3.5-6.0 nm
Spindle Size
M10x1.5 THD
Free Speed
12000 RPM
Power
0.75 kW
Air Consumption
566 l/m
Dimension
L229×W200×H82
Net Weight
1.7 kg
Air Inlet
1/4"
4" Disc safety Rotary
KPT-100ARG
Disc Capa.
100×16×3.5-6.0 nm
Spindle Size
M10x1.5 THD
Free Speed
12000 RPM
Power
0.75 kW
Air Consumption
566 l/m
Dimension
L229×W200×H82
Net Weight
2 kg
Air Inlet
1/4"
5" Disc safety Lever
KPT-126
Disc Capa.
125×22.5×1.0-6.0 nm
Spindle Size
M14×2.0THD
Free Speed
12000 RPM
Power
0.75 kW
Air Consumption
566 l/m
Dimension
L229×W200×H82
Net Weight
1.7 kg
Air Inlet
1/4"
5" Disc safety Rotary
KPT-125A
Disc Capa.
125×22.5×2.0-6.0 nm
Spindle Size
M14×2.0THD
Free Speed
12000 RPM
Power
0.75 kW
Air Consumption
566 l/m
Dimension
L229×W200×H82
Net Weight
1.7 kg
Air Inlet
1/4"
7" Disc safety Lever
KPT-184
Disc Capa.
180×22.5×1.0-6.0 nm
Spindle Size
M14/M16x2.0 THD
Free Speed
7500 RPM
Power
1.10 kW
Air Consumption
708 l/m
Dimension
L320×W95×H110
Net Weight
3.5 kg
Air Inlet
3/8"
7" Disc safety Rotary
KPT-183
Disc Capa.
125×22.5×2.0-6.0 nm
Spindle Size
M14/M16×2.0THD
Free Speed
7500 RPM
Power
1.10 kW
Air Consumption
786 l/m
Dimension
L270×W255×H110
Net Weight
3.5 kg
Air Inlet
3/8"

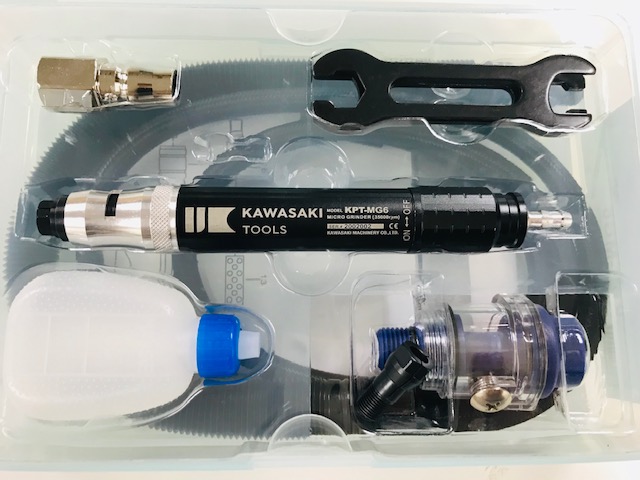

Micro Grinder
KPT-MG6
Collet Size
6 (mm)
Free Speed
35000 RPM
length
150 mm
Air Consumption
466 l/m
Net Weight
0.25 kg
Air Inlet
1/4"

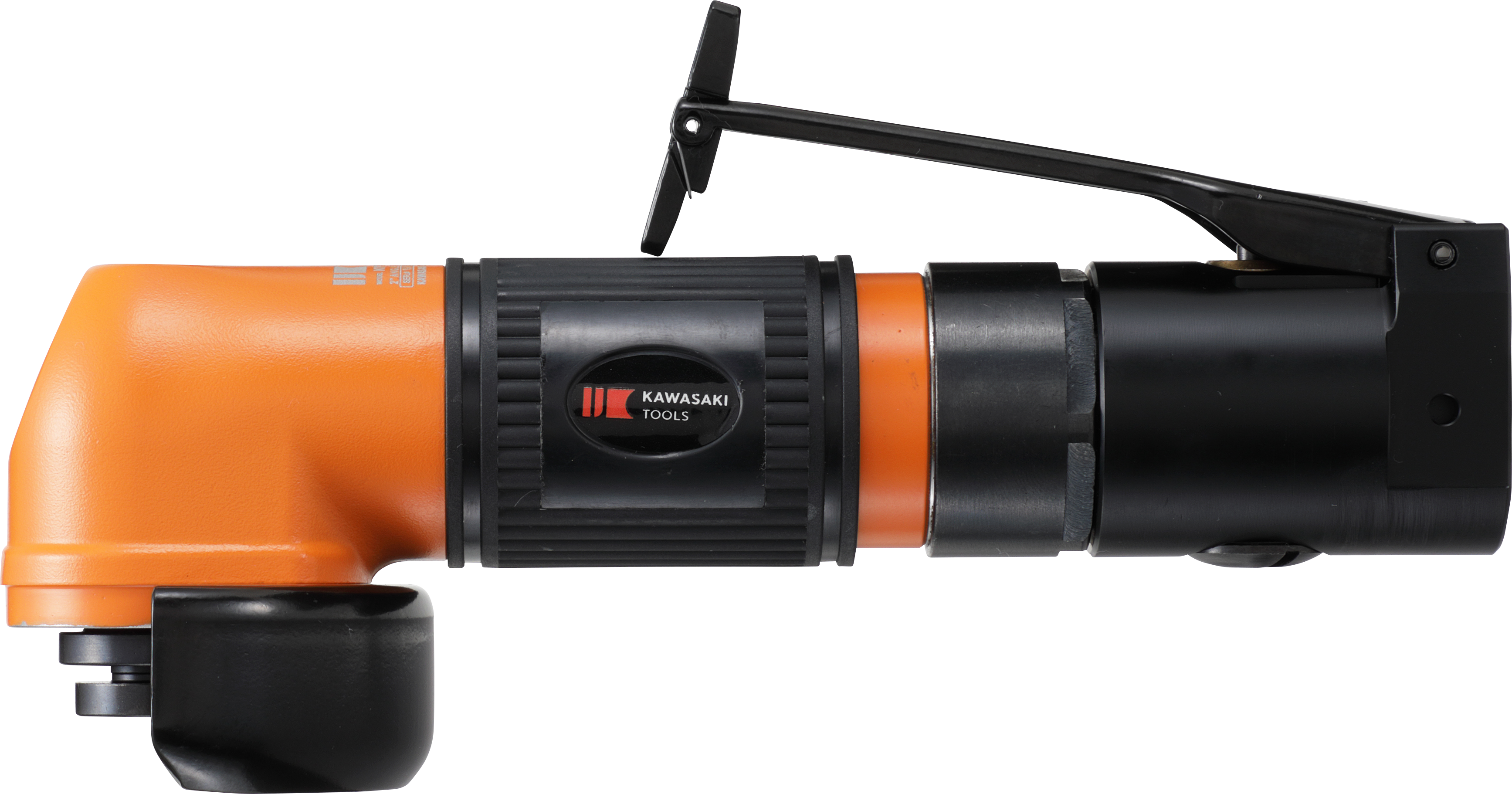

For 2" Disc, Safety Lever
KPT-9201L
Disc Capa.
50mm
Spindle Size
1/4"-28 (inch-THD)
Free Speed (RPM)
15000rpm
Air Consumption
694 l/min
length
180mm
Net Weight
0.7kg
Air Inlet
1/4"

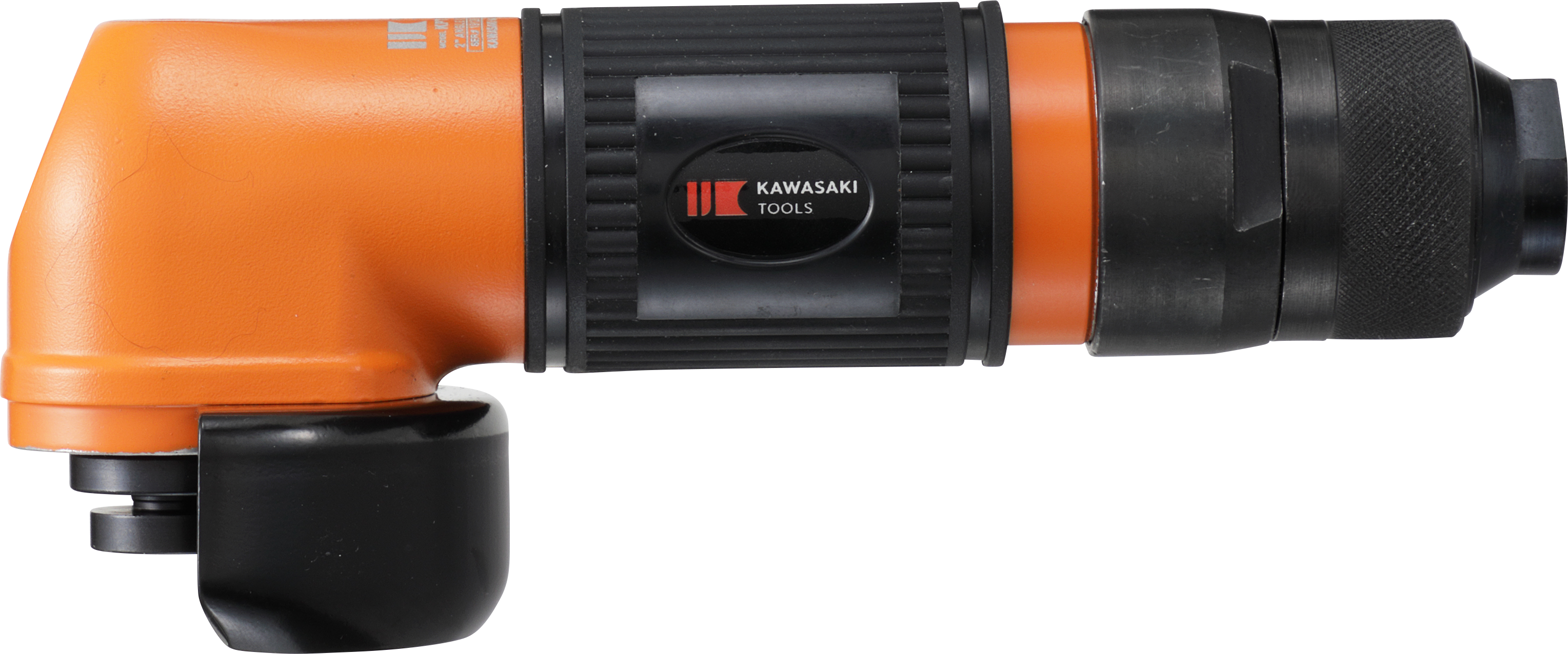

For 2" Disc, rotary
KPT-9201R
Disc Capa.
50mm
Spindle Size
1/4"-28 (inch-THD)
Free Speed (RPM)
15000rpm
Air Consumption
694 l/min
length
180mm
Net Weight
0.6kg
Air Inlet
1/4"

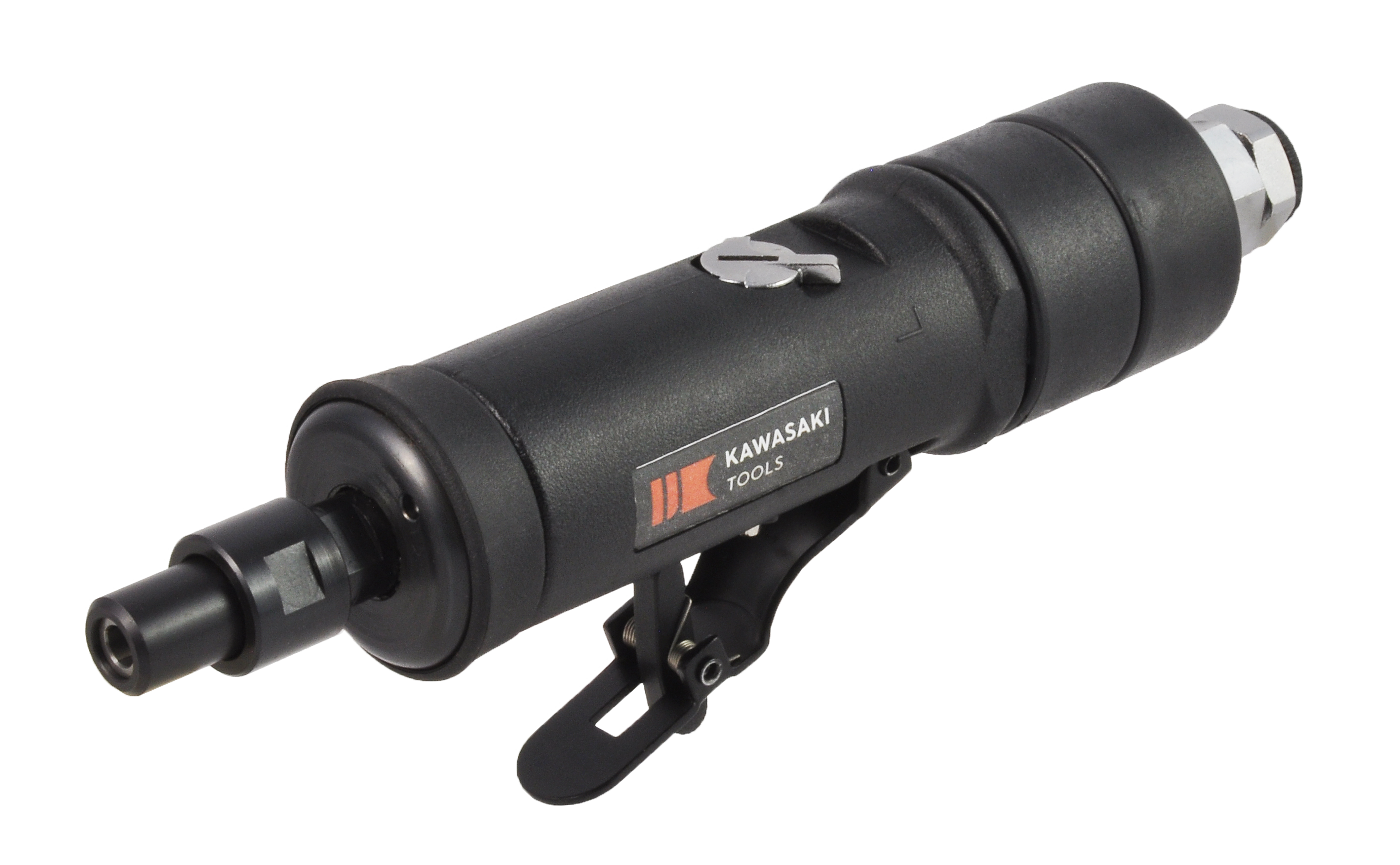

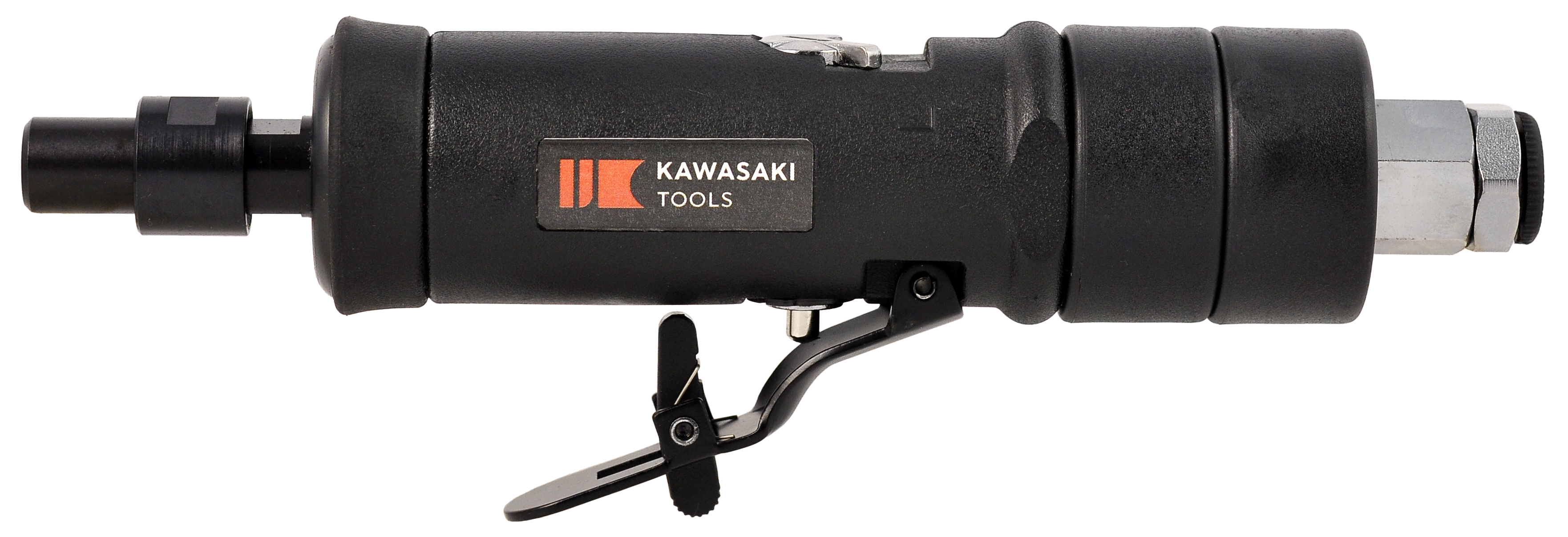

Die Grinder
KPT-1105
Collet Size
6mm
Free Speed
25000rpm
Air Consumption
505 l/min
length
179mm
Net Weight
0.5kg
Air Inlet
1/4"

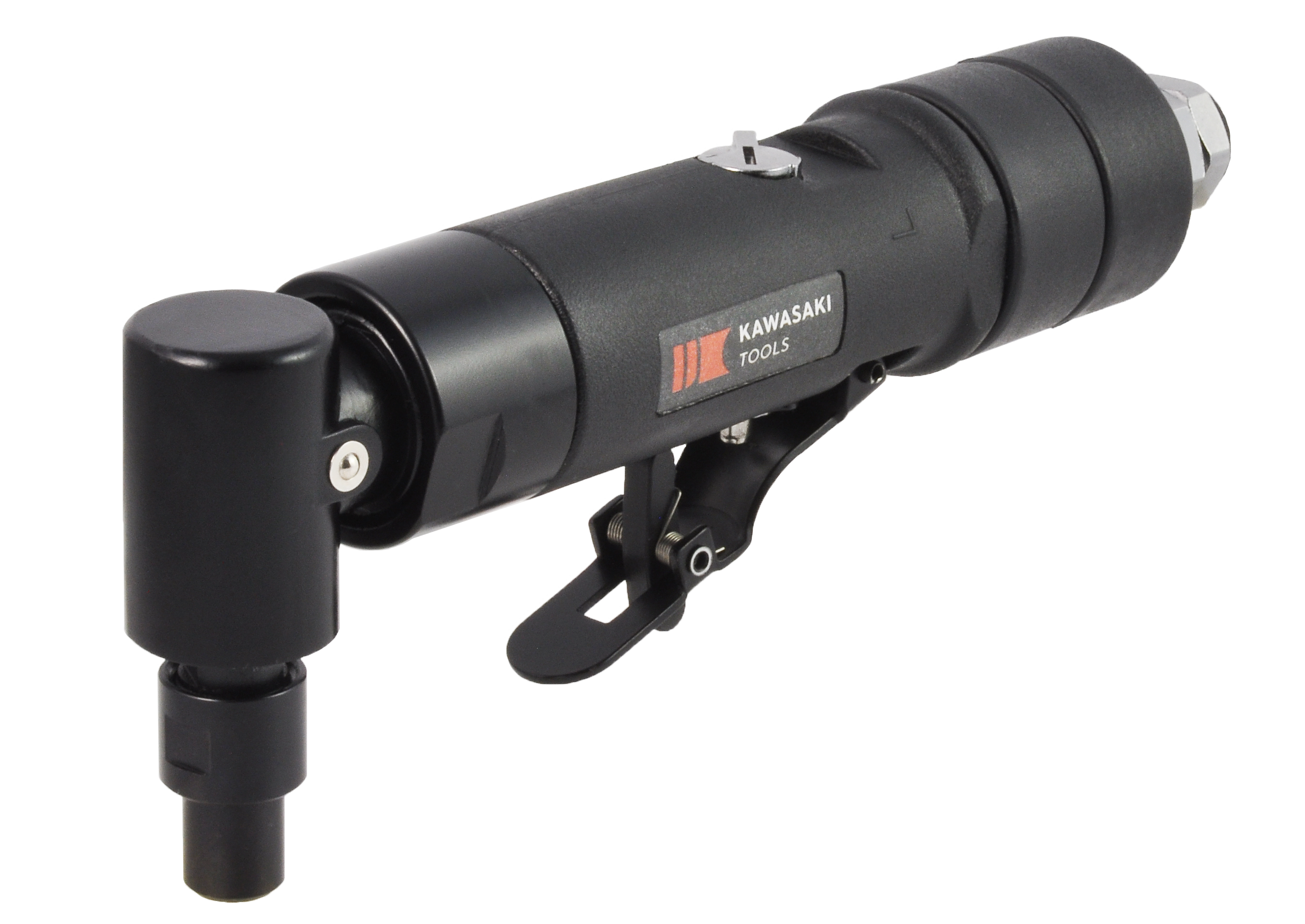

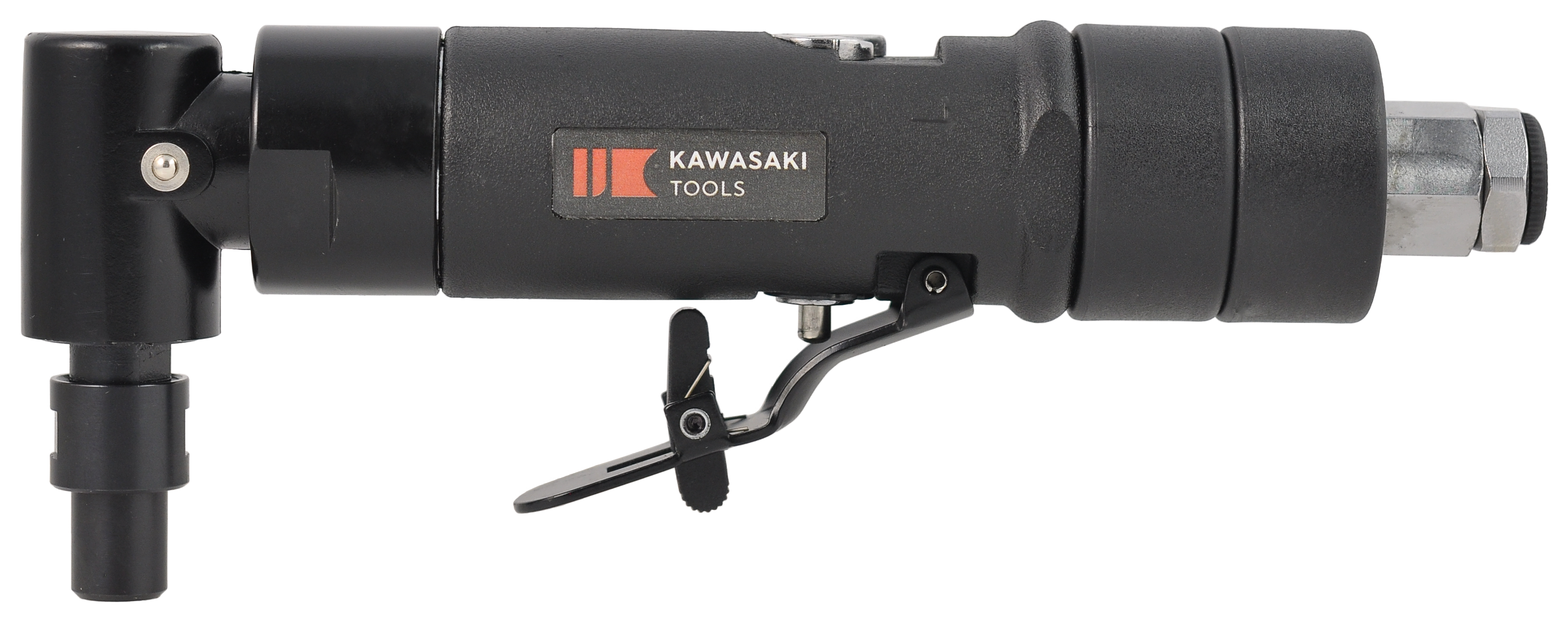

Die Grinder
KPT-1105A
Collet Size
6mm
Free Speed
25000rpm
Air Consumption
505 l/min
length
182mm
Net Weight
0.6kg
Air Inlet
1/4"
