Chippers, Hammers, Breakers, Rammers
LIST
Flux Chipper
KPT-F1
Piston Dia
20 (mm)
Piston Stroke
12 (mm)
Blow/min.
5,000 BPM
Air Con.
150 (l/m)
Dim. (mm)
L175*W38*H38
Net Weight
0.9 kg
Air Inlet
1/4"
Needle Scaler kits
KPT-F1J
Piston Dia
20 (mm)
Piston Stroke
12 (mm)
Blow/min.
5,000 BPM
Air Con.
150 (l/m)
Dim. (mm)
L230*W38*W38
Net Weight
1.27 kg
Air Inlet
1/4"
Flux Chipper
KPT-F2
Piston Dia
22 (mm)
Piston Stroke
22 (mm)
Blow/min.
4000 BPM
Air Con.
400 (l/m)
Dim. (mm)
L187*W40*H40
Net Weight
1.1 kg
Air Inlet
1/4"

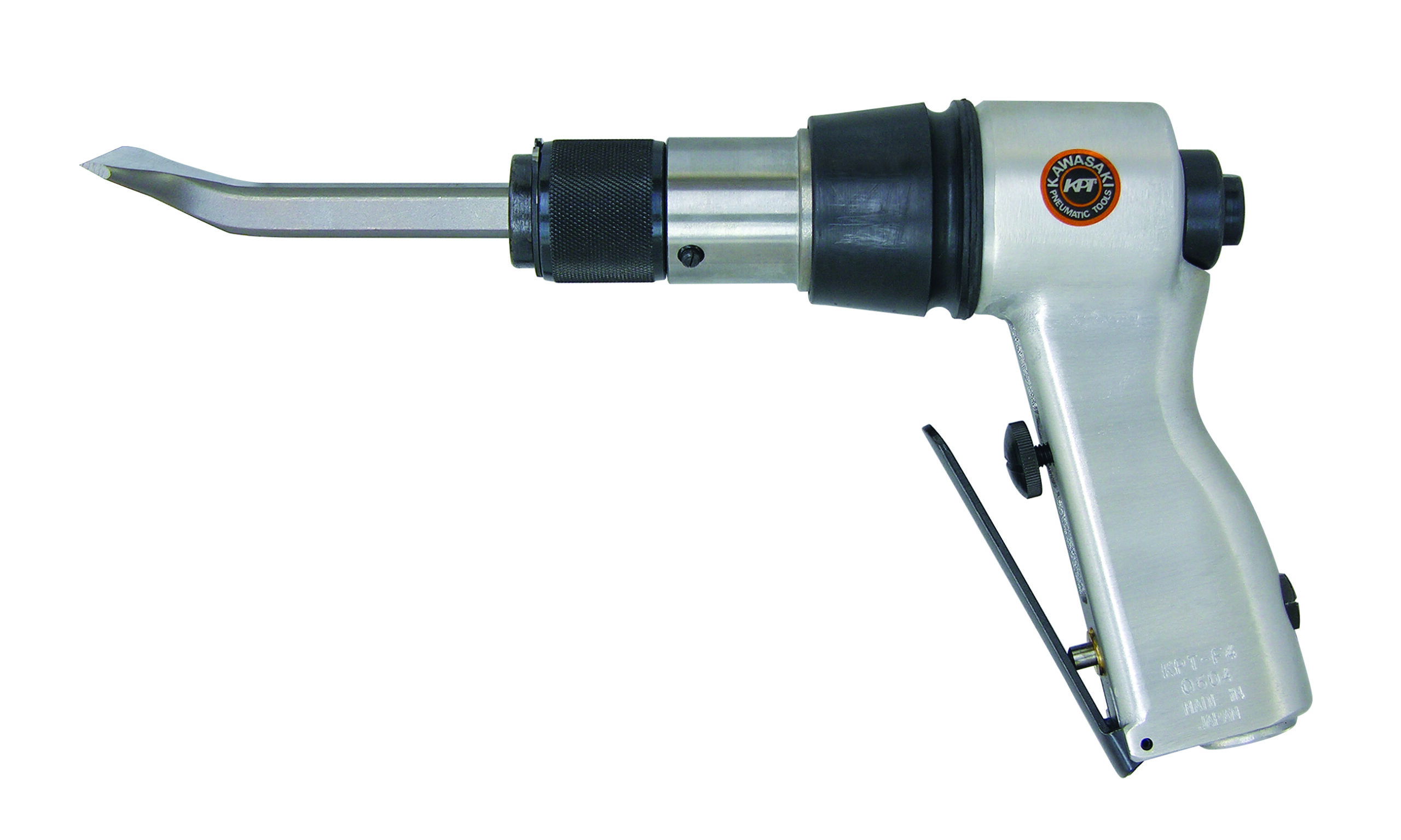

Flux Chipper
KPT-F3
Piston Dia
20 (mm)
Piston Stroke
12 (mm)
Blow/min.
4000 BPM
Air Con.
190 (l/m)
Dim. (mm)
L198xW54xH167
Net Weight
1.8 kg
Air Inlet
1/4"

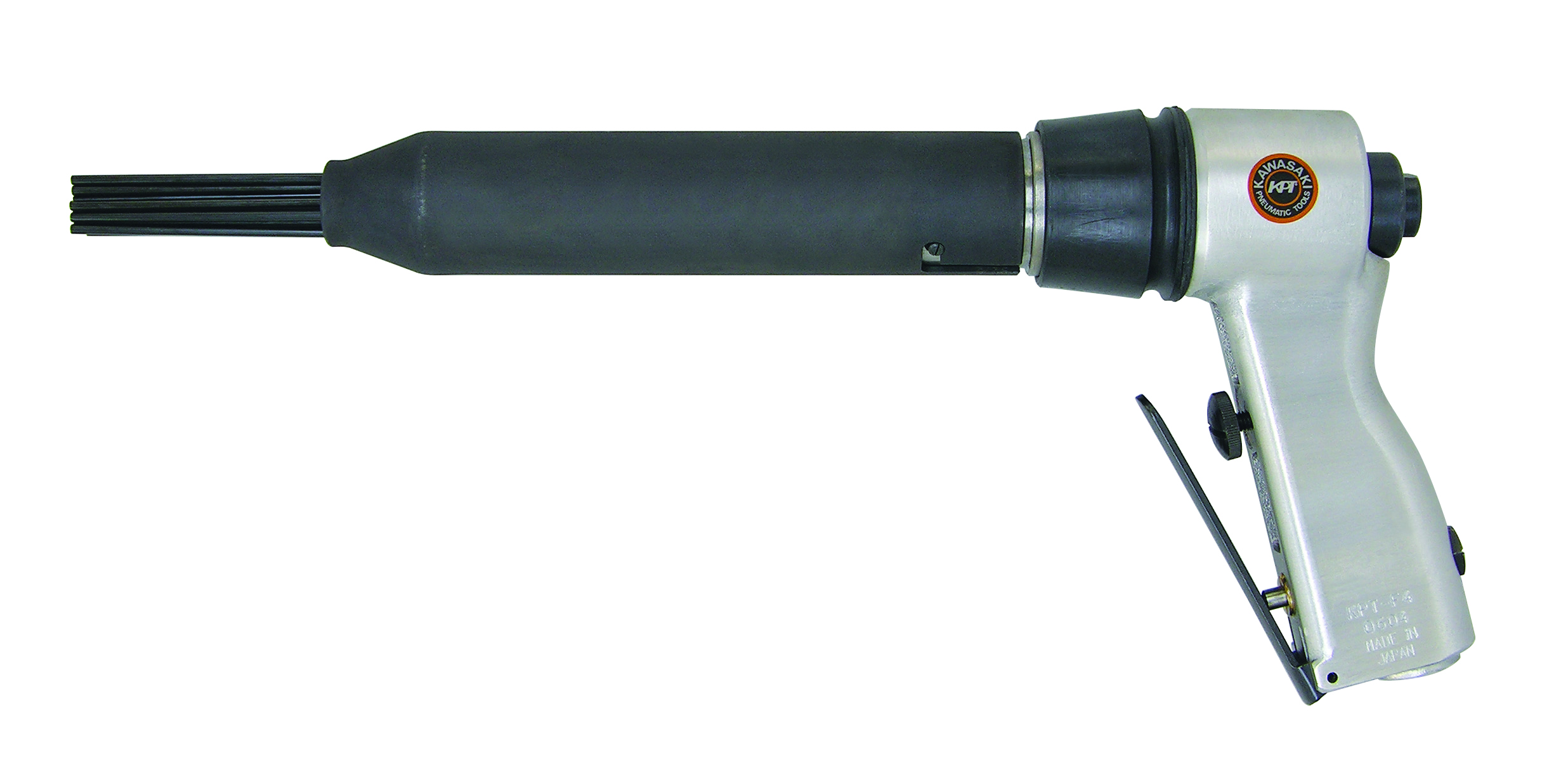

Flux Chipper
KPT-F4
Piston Dia
20(mm)
Piston Stroke
12 (mm)
Blow/min.
4000 BPM
Air Con.
190 (l/m)
Dim. (mm)
L395xW54xH167
Net Weight
2.7 kg
Air Inlet
1/4"
Flux Chipper
KPT-F5
Piston Dia
25(mm)
Piston Stroke
22 (mm)
Blow/min.
4000 BPM
Air Con.
200 (l/m)
Dim. (mm)
L232xW42xH63
Net Weight
1.7 kg
Air Inlet
1/4"
Needle Scaler kits
KPT-F6
Piston Dia
25 (mm)
Piston Stroke
22 (mm)
Blow/min.
4000 BPM
Air Con.
200 (l/m)
Dim. (mm)
L410xW44xH63
Net Weight
2.6 kg
Air Inlet
1/4"
Hammer
KPT-52/52K
Piston Dia
19 (mm)
Piston Stroke
55 mm
Blow/min.
3000 BPM
Air Con.
404 (l/m)
Dim. (mm)
L216xW15xH157
Net Weight
1.65 kg
Air Inlet
1/4"

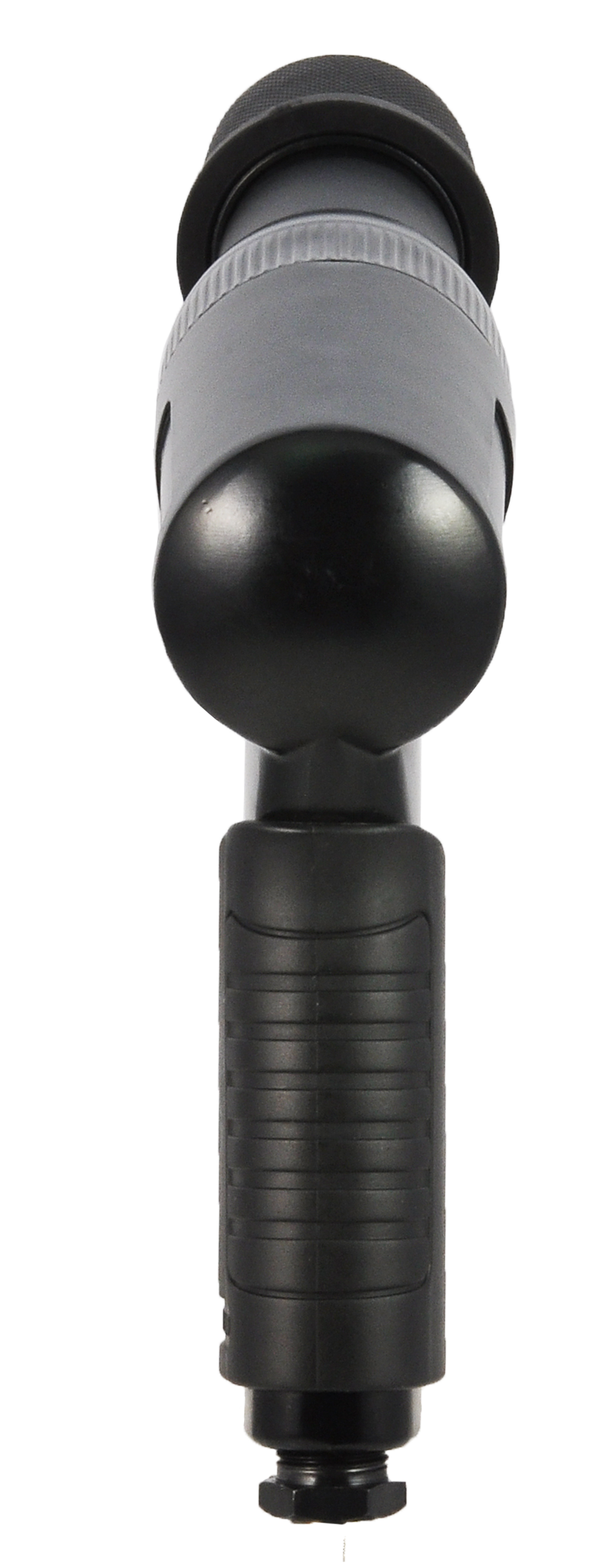

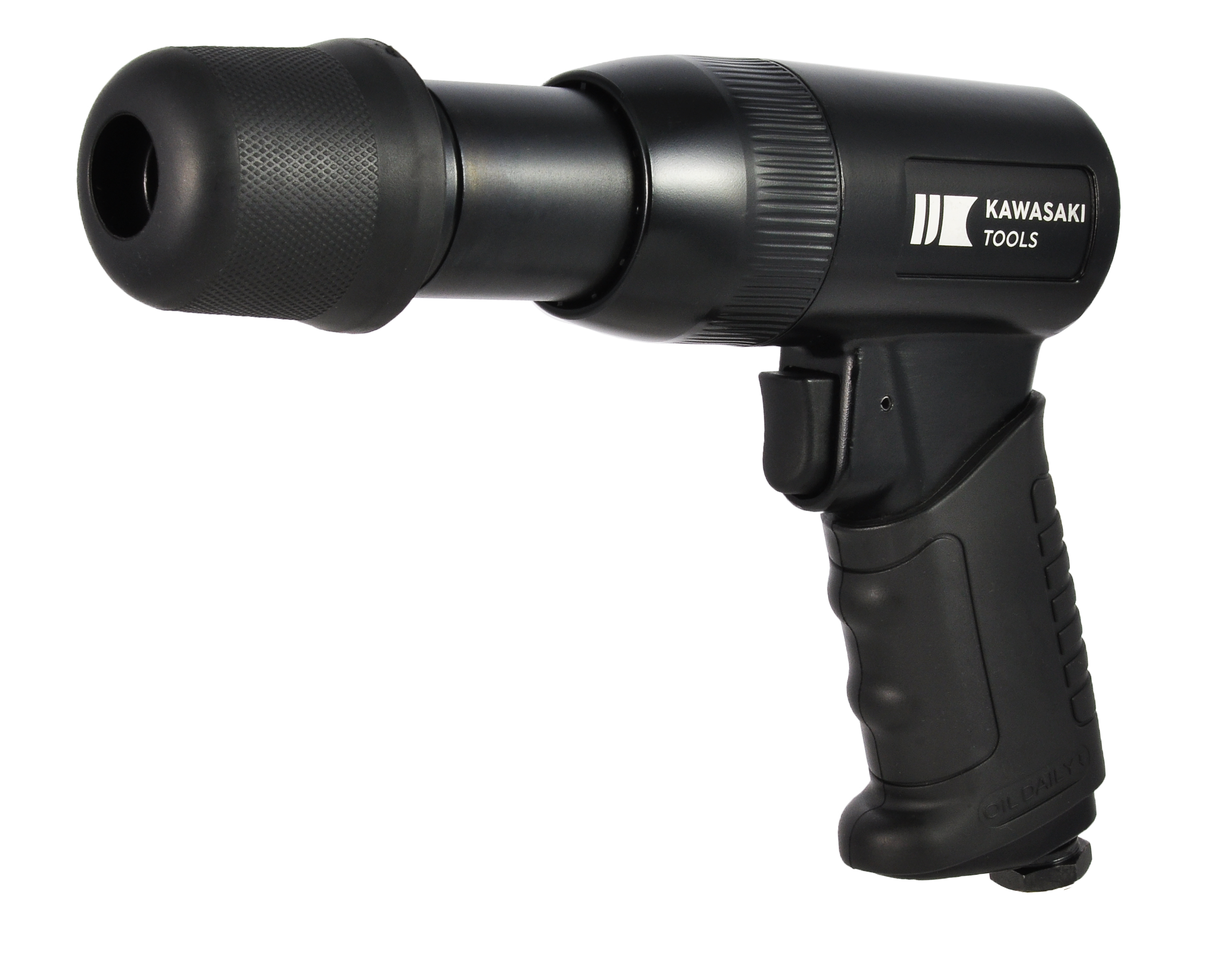

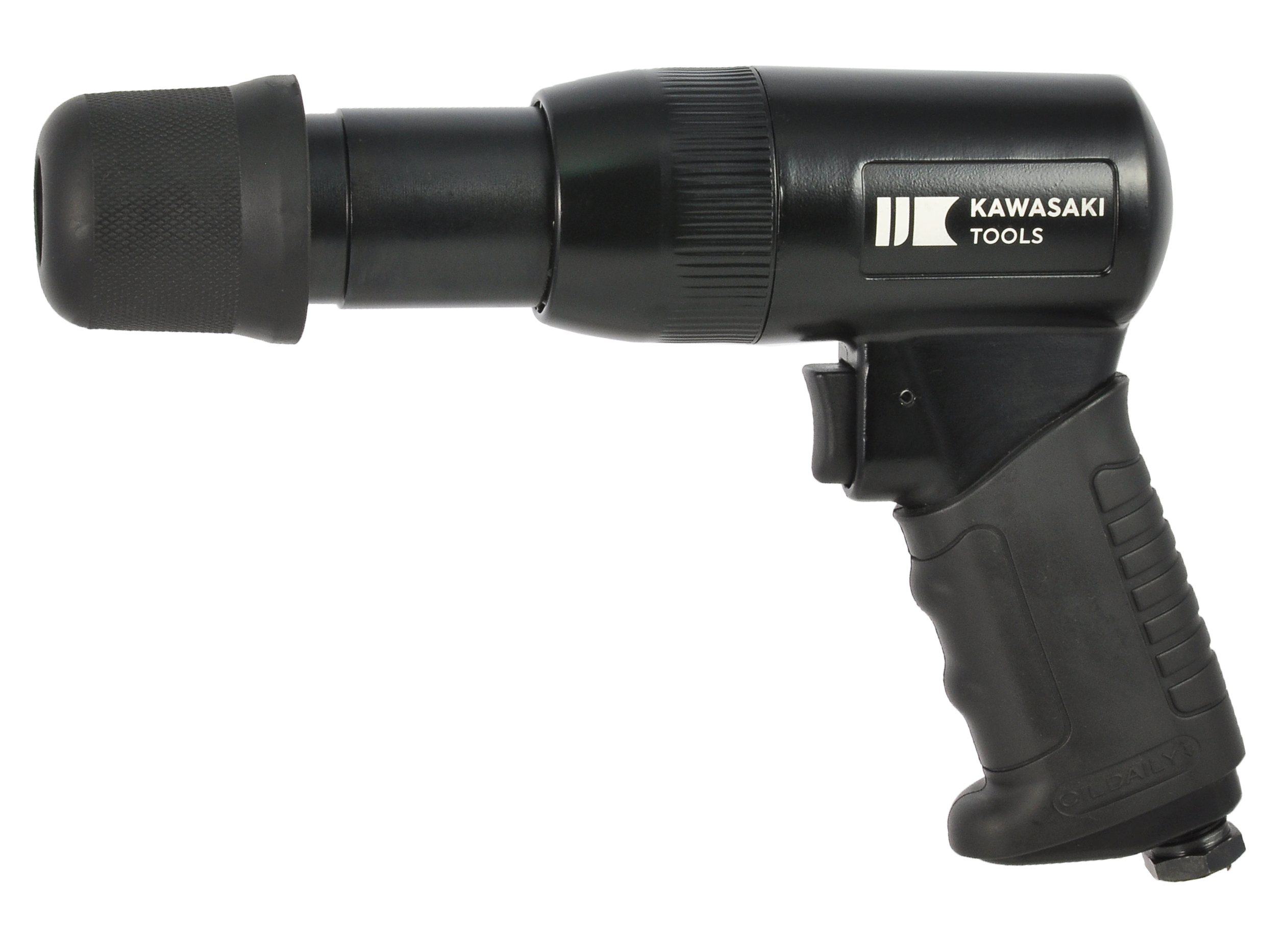

Hammer
KPT-0219/0219K
Piston Dia
10 mm
Piston Stroke
71 mm
Blow/min.
3000 BPM
Air Con.
221 (l/m)
Dim. (mm)
243
Net Weight
2 kg
Air Inlet
1/4"

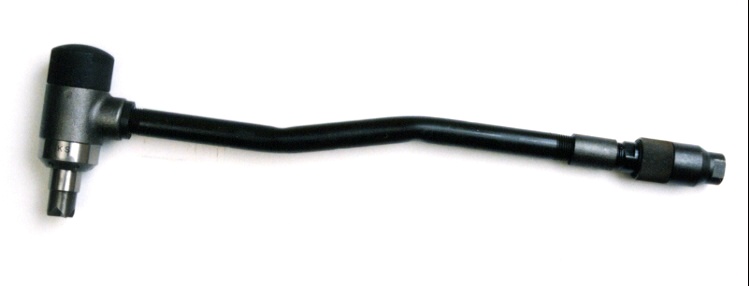

Scaling Hammer
KPT-S2
Piston Dia
30×24×80 mm
Piston Stroke
25 mm
Blow/min.
8000 BPM
Air Con.
300 l/m
Dim. (mm)
L480*W48*H115 mm
Net Weight
2.3 kg
Air Inlet
3/8"

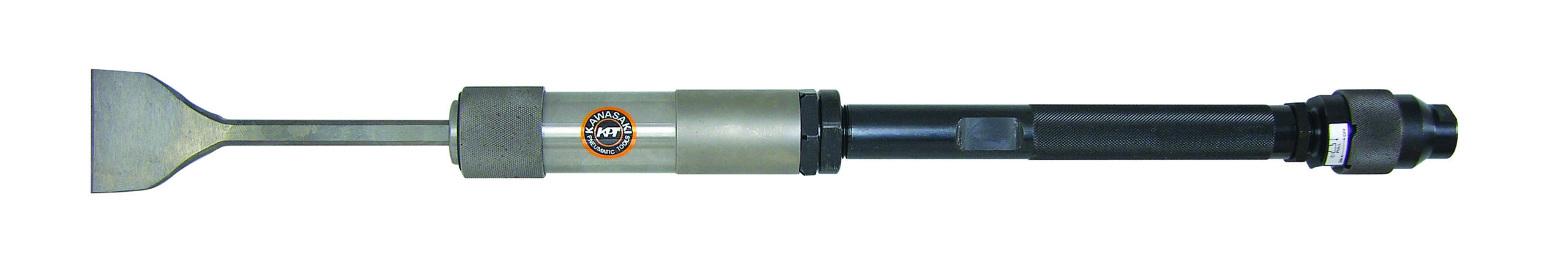

Jumbo Scrapers
KPT-J5
Piston Dia
25 mm
Piston Stroke
22 mm
Blow/min.
4000 BPM
Air Con.
350 l/m
Dim. (mm)
L750*W45*H45 mm
Net Weight
3 kg
Air Inlet
3/8"

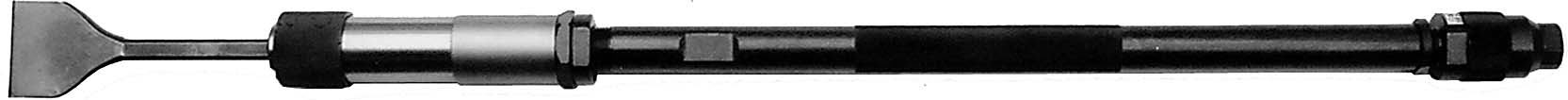

Jumbo Scrapers
KPT-J10
Piston Dia
25 mm
Piston Stroke
22 mm
Blow/min.
4000 BPM
Air Con.
350 l/m
Dim. (mm)
L1000*W45*H45 mm
Net Weight
3.9kg
Air Inlet
3/8"

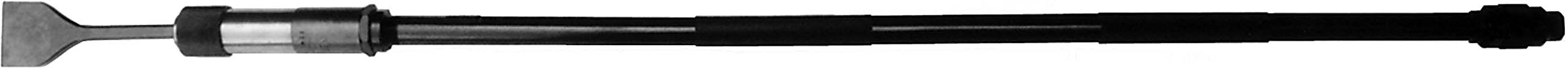

Jumbo Scrapers
KPT-J15
Piston Dia
25 mm
Piston Stroke
22 mm
Blow/min.
4000 BPM
Air Con.
350 l/m
Dim. (mm)
L1500*W45*H45 mm
Net Weight
5.2kg
Air Inlet
3/8"
Chipping Hammers
NC-0S
Piston Dia
20 mm
Piston Stroke
45 mm
Blow/min.
3000 BPM
Air Con.
350 l/m
Dim. (mm)
L246*W51*H136 mm
Net Weight
2.6 kg
Air Inlet
3/8"
Chipping Hammers
NC-1S
Piston Dia
28.5 mm
Piston Stroke
26 mm
Blow/min.
3000 BPM
Air Con.
550 l/m
Dim. (mm)
L355*W74*H150 mm
Net Weight
5.5 kg
Air Inlet
3/8"
Chipping Hammers
NC-2S
Piston Dia
28.5 mm
Piston Stroke
52 mm
Blow/min.
2600 BPM
Air Con.
600 l/m
Dim. (mm)
L375*W74*H150 mm
Net Weight
6.2 kg
Air Inlet
3/8"
Chipping Hammers
NC-3S
Piston Dia
28.5 mm
Piston Stroke
76 mm
Blow/min.
2300 BPM
Air Con.
600 l/m
Dim. (mm)
L420*W74*H150 mm
Net Weight
6.5 kg
Air Inlet
3/8"
Chipping Hammers
AA-10A
Piston Dia
24 mm
Piston Stroke
51 mm
Blow/min.
2800 BPM
Air Con.
400 l/m
Dim. (mm)
L295*W70*H180
Net Weight
4.2 kg
Air Inlet
3/8"
Chipping Hammers
AA-15A
Piston Dia
24 mm
Piston Stroke
70 mm
Blow/min.
2200 BPM
Air Con.
500 l/m
Dim. (mm)
L330*W70*H180
Net Weight
4.6 kg
Air Inlet
3/8"
Chipping Hammers
AA-30A
Piston Dia
28 mm
Piston Stroke
79 mm
Blow/min.
2200 BPM
Air Con.
500 l/m
Dim. (mm)
L345*W172*H81
Net Weight
6.2 kg
Air Inlet
3/8"
Concrete Breakers
CB-10
Piston Dia
35 mm
Piston Stroke
102 mm
Blow/min.
1700 BPM
Air Con.
1000 l/m
Dim. (mm)
L482*W88*H316
Net Weight
13.5 kg
Air Inlet
1"
Concrete Breakers
CB-20
Piston Dia
40 mm
Piston Stroke
165 mm
Blow/min.
1000BPM
Air Con.
1200 l/m
Dim. (mm)
L565*W93*H360
Net Weight
21 kg
Air Inlet
1"
Concrete Breakers
CB-30
Piston Dia
45 mm
Piston Stroke
165 mm
Blow/min.
850 BPM
Air Con.
1398 l/m
Dim. (mm)
L595*W106*H360
Net Weight
29 kg
Air Inlet
1"
Concrete Breakers
CB-35
Piston Dia
45 mm
Piston Stroke
200 mm
Blow/min.
800BPM
Air Con.
1500 l/m
Dim. (mm)
L660*W360*H106
Net Weight
32.5 kg
Air Inlet
1"
Sand Rammers
KPT-1
Piston Dia
18 mm
Piston Stroke
50 mm
Blow/min.
1800 BPM
Air Con.
400 l/m
Dim. (mm)
L230*W65*H36.5
Net Weight
2 kg
Air Inlet
3/8"
Sand Rammers
KPT-1L
Piston Dia
18 mm
Piston Stroke
50 mm
Blow/min.
1800 BPM
Air Con.
400 l/m
Dim. (mm)
L430*W65*H36.5
Net Weight
2 kg
Air Inlet
3/8"
Sand Rammers
KPT-2
Piston Dia
22 mm
Piston Stroke
65 mm
Blow/min.
1000 BPM
Air Con.
500 l/m
Dim. (mm)
L277*W41*H68
Net Weight
3 kg
Air Inlet
3/8"
Sand Rammers
KPT-2L
Piston Dia
22 mm
Piston Stroke
65 mm
Blow/min.
1000 BPM
Air Con.
500 l/m
Dim. (mm)
L470*W41*H68
Net Weight
4 kg
Air Inlet
3/8"
Sand Rammers
KPT-3
Piston Dia
25.4 mm
Piston Stroke
100 mm
Blow/min.
800 BPM
Air Con.
700 l/m
Dim. (mm)
L400*W78*H60
Net Weight
6 kg
Air Inlet
3/8"
Sand Rammers
KPT-4
Piston Dia
25.4 mm
Piston Stroke
100 mm
Blow/min.
800 BPM
Air Con.
700 l/m
Dim. (mm)
L946*W63*H63
Net Weight
8 kg
Air Inlet
3/8"
Sand Rammers
KPT-5
Piston Dia
32 mm
Piston Stroke
127 mm
Blow/min.
700 BPM
Air Con.
850 l/m
Dim. (mm)
L987*W68*H68
Net Weight
9.4 kg
Air Inlet
0.5
Sand Rammers
KPT-6
Piston Dia
38 mm
Piston Stroke
152 mm
Blow/min.
600 BPM
Air Con.
900 l/m
Dim. (mm)
L1330*W79*H79
Net Weight
14 kg
Air Inlet
0.5
Sand Rammers
KPT-7
Piston Dia
42 mm
Piston Stroke
152 mm
Blow/min.
600 BPM
Air Con.
1000 l/m
Dim. (mm)
L1335*W83*H83
Net Weight
16 kg
Air Inlet
0.5

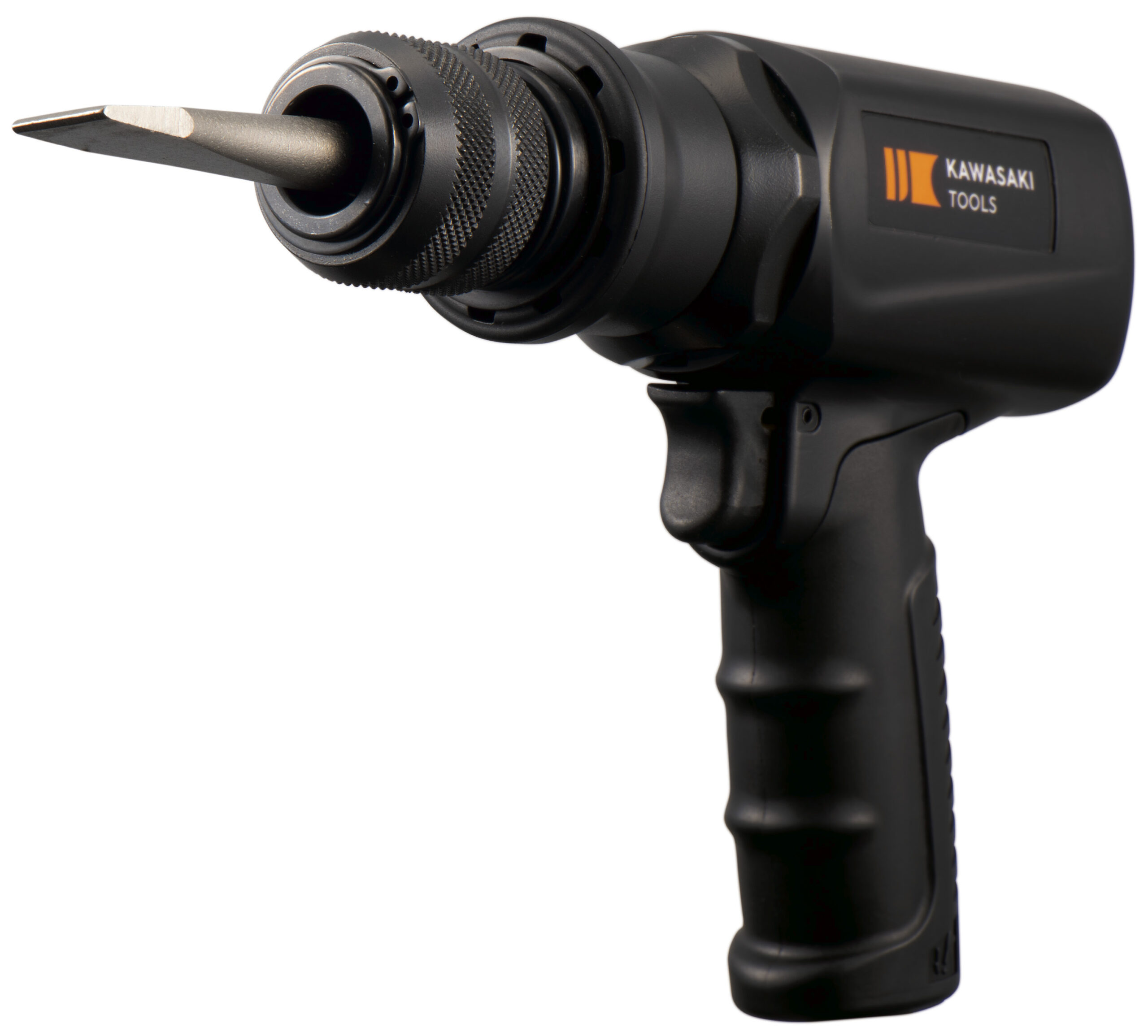

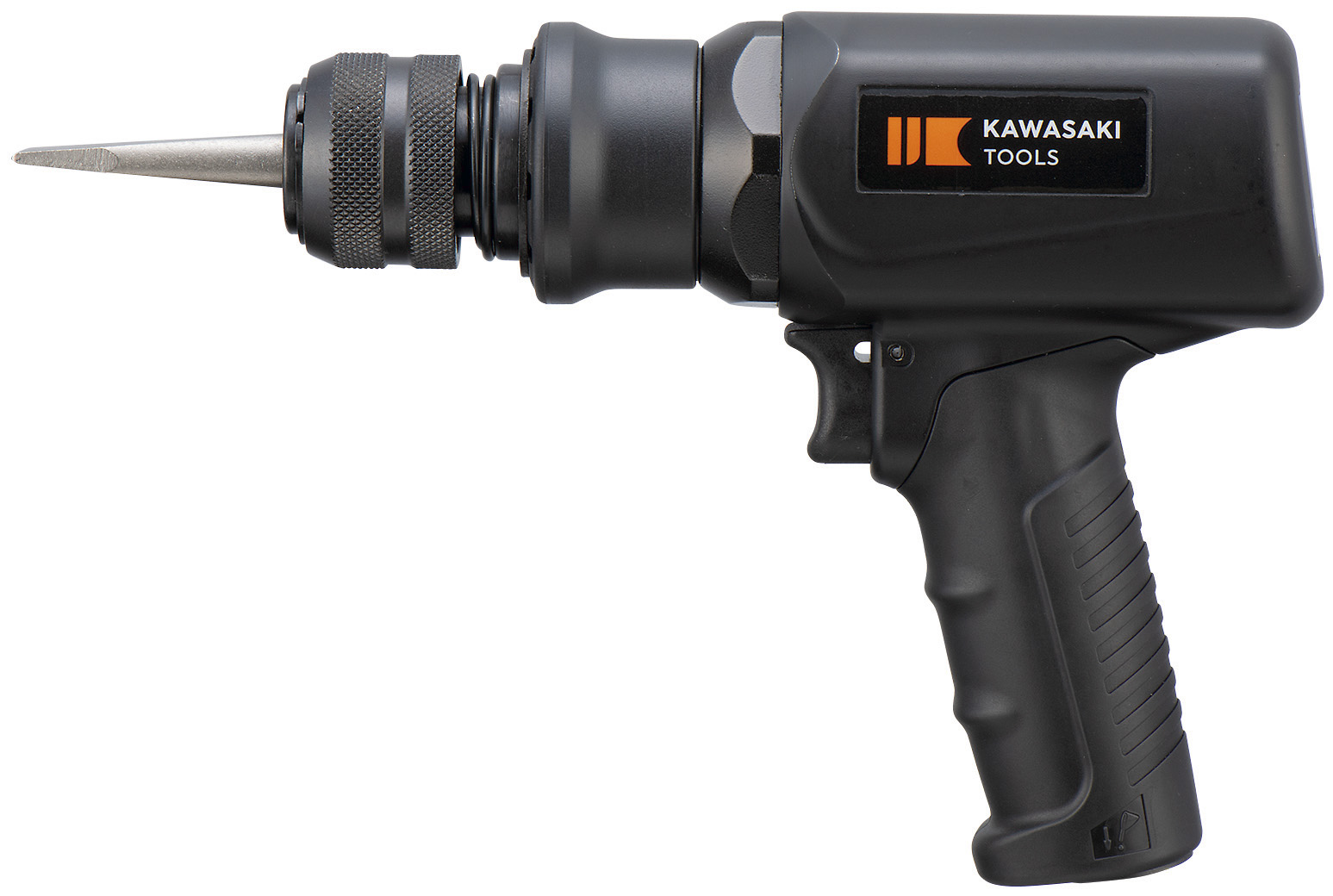

Air Hammer
KPT-0220
Air Consumption
4000
Power
BEATING POWER-600kgf
Power
VIBRATION-2.4229 m/s2
Net Weight
2.16kg
length
OVERRALL LENGTH - 36mm
length
BARREL LENGTH - 150mm
Air Inlet
1/4"PT

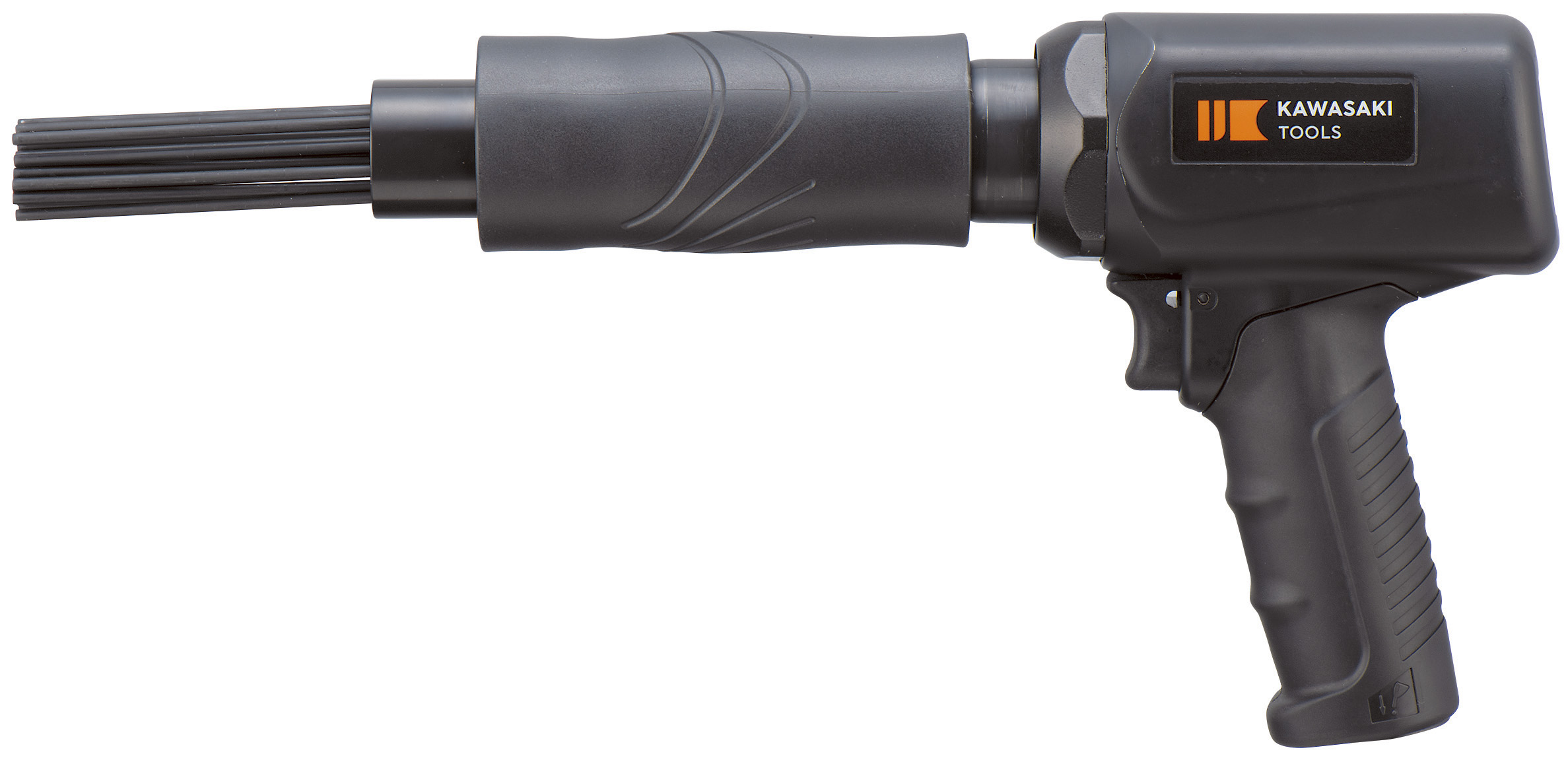

Needle Scaler
KPT-0120
Air Consumption
4000
Power
BEATING POWER-600kgf
Power
VIBRATION-2.4229 m/s2
Net Weight
2.16kg
length
OVERRALL LENGTH - 36mm
length
BARREL LENGTH - 150mm
Air Inlet
1/4"PT

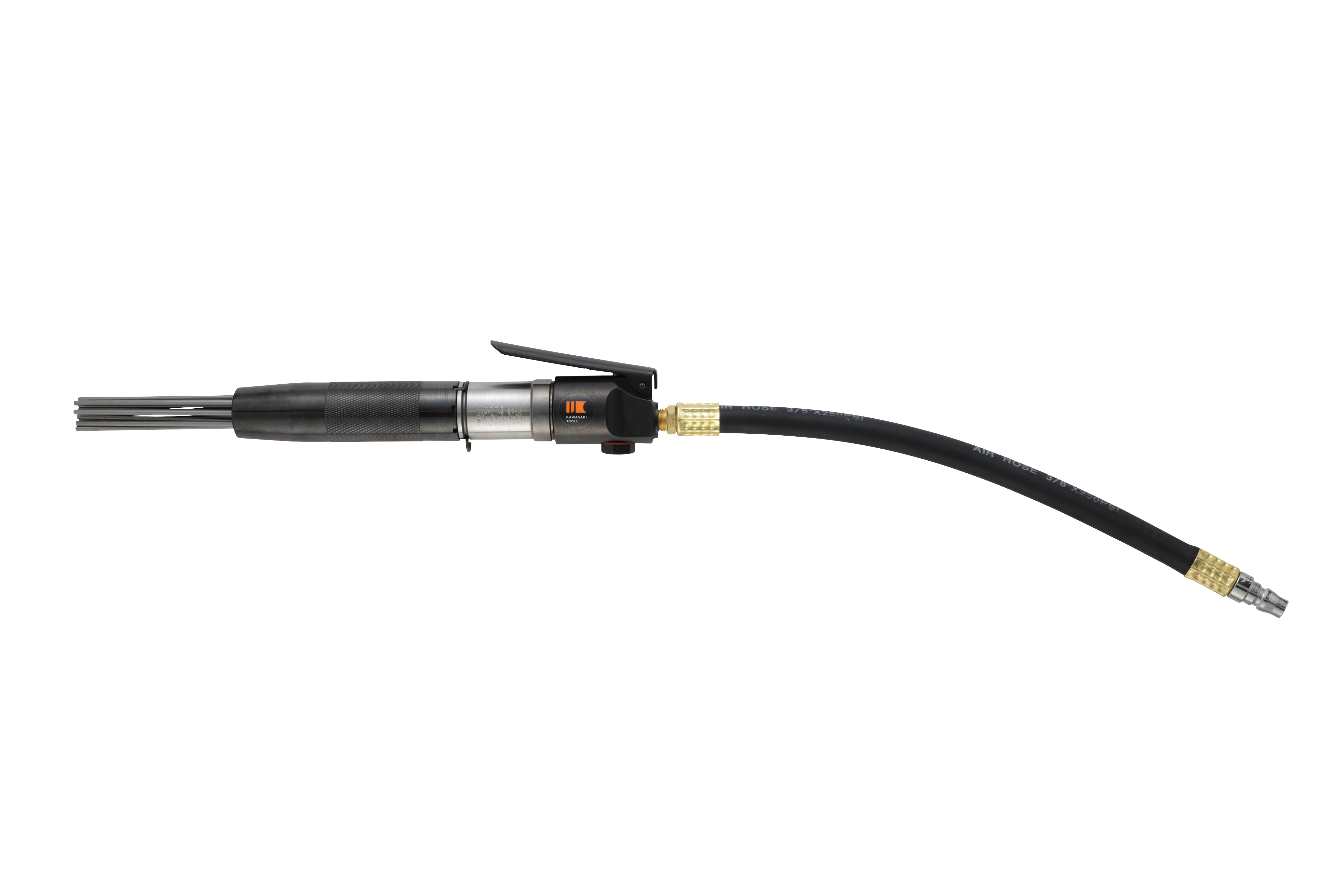

Needle Scaler
KPT-F1J-V2
Piston Dia
20 mm
Piston Stroke
12 mm
Blow/min.
5,000 BPM
length
230mm
Air Consumption
150 l/min
Net Weight
1.3kg
Air Inlet
1/4"

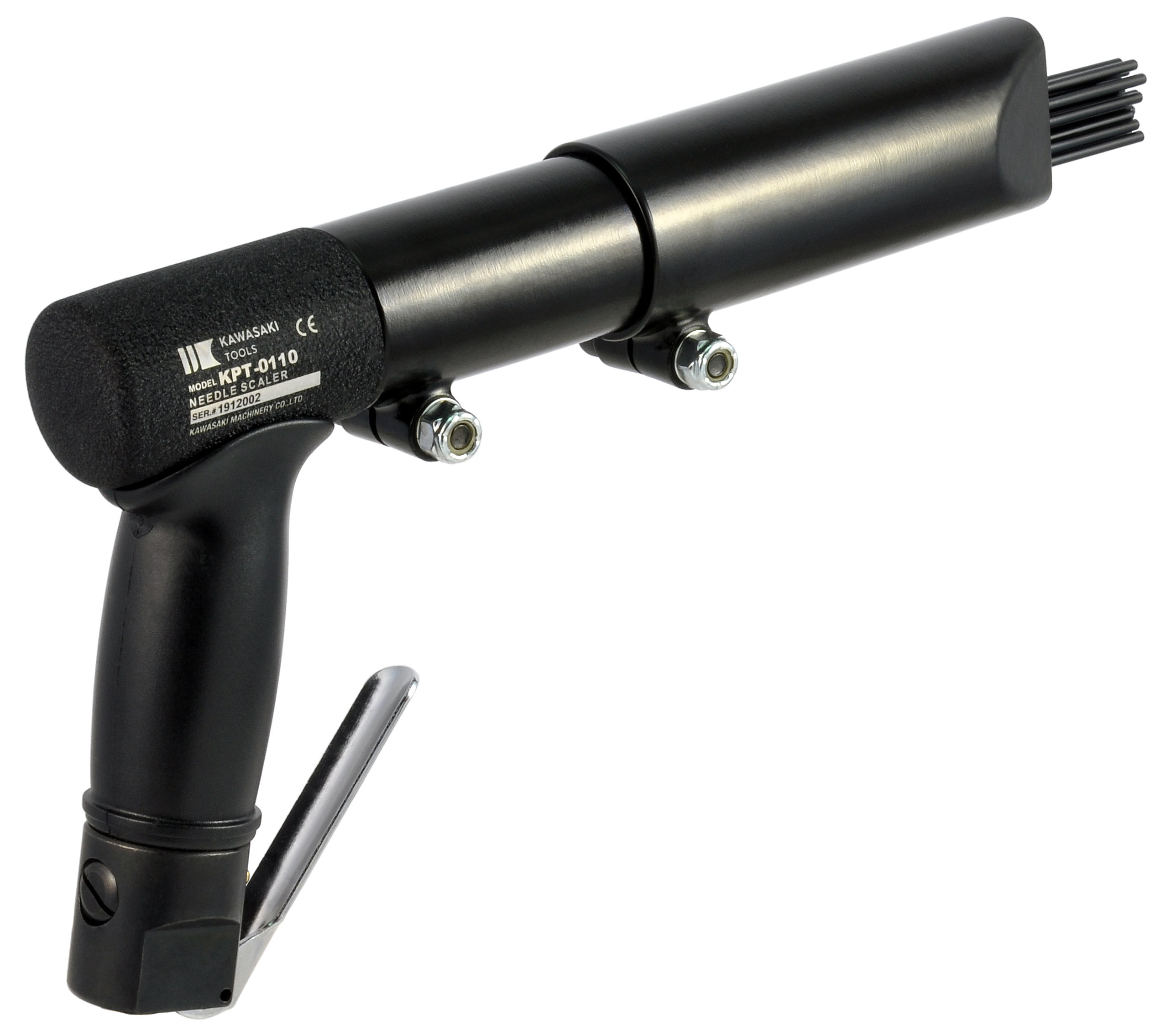

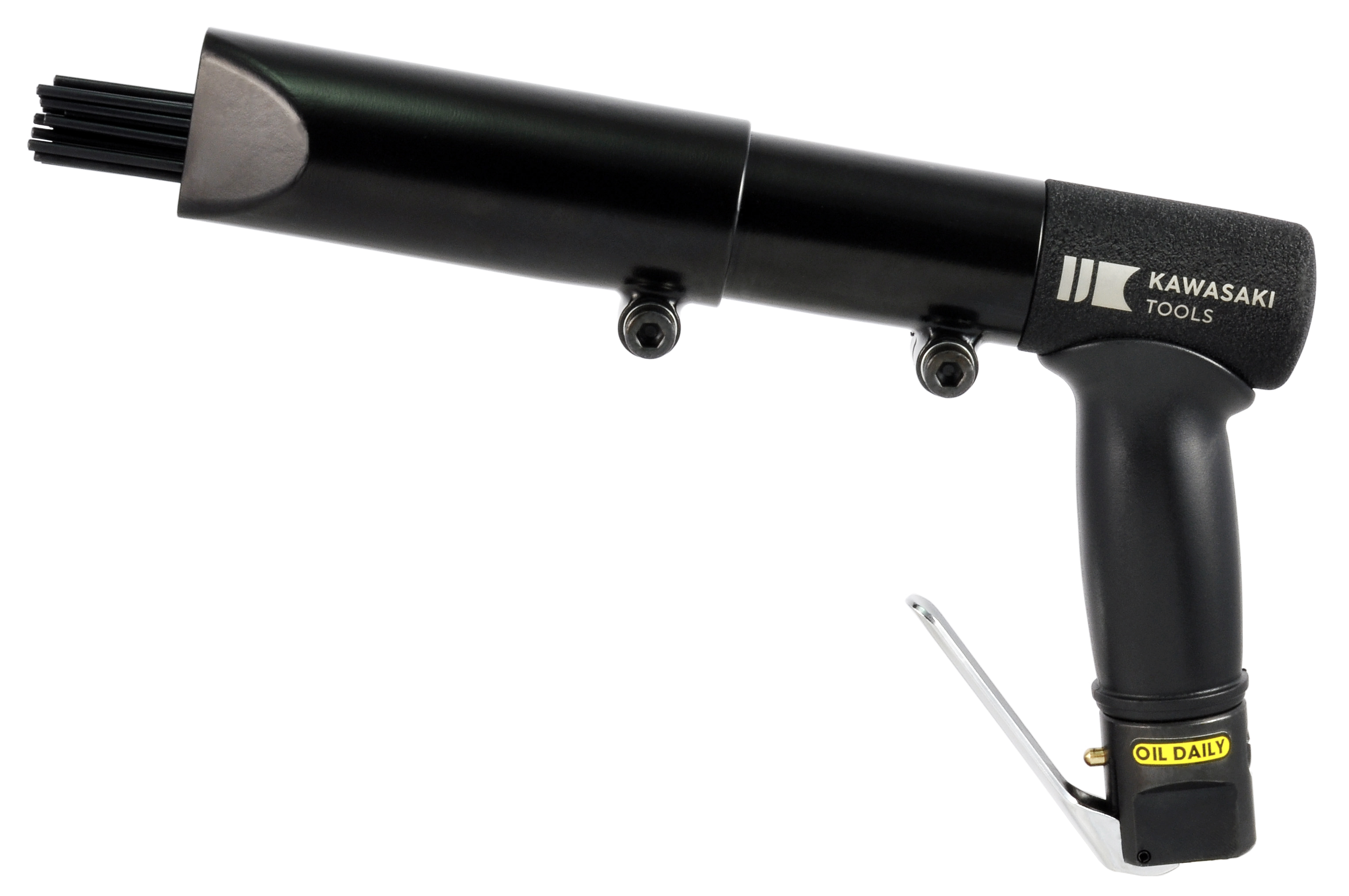

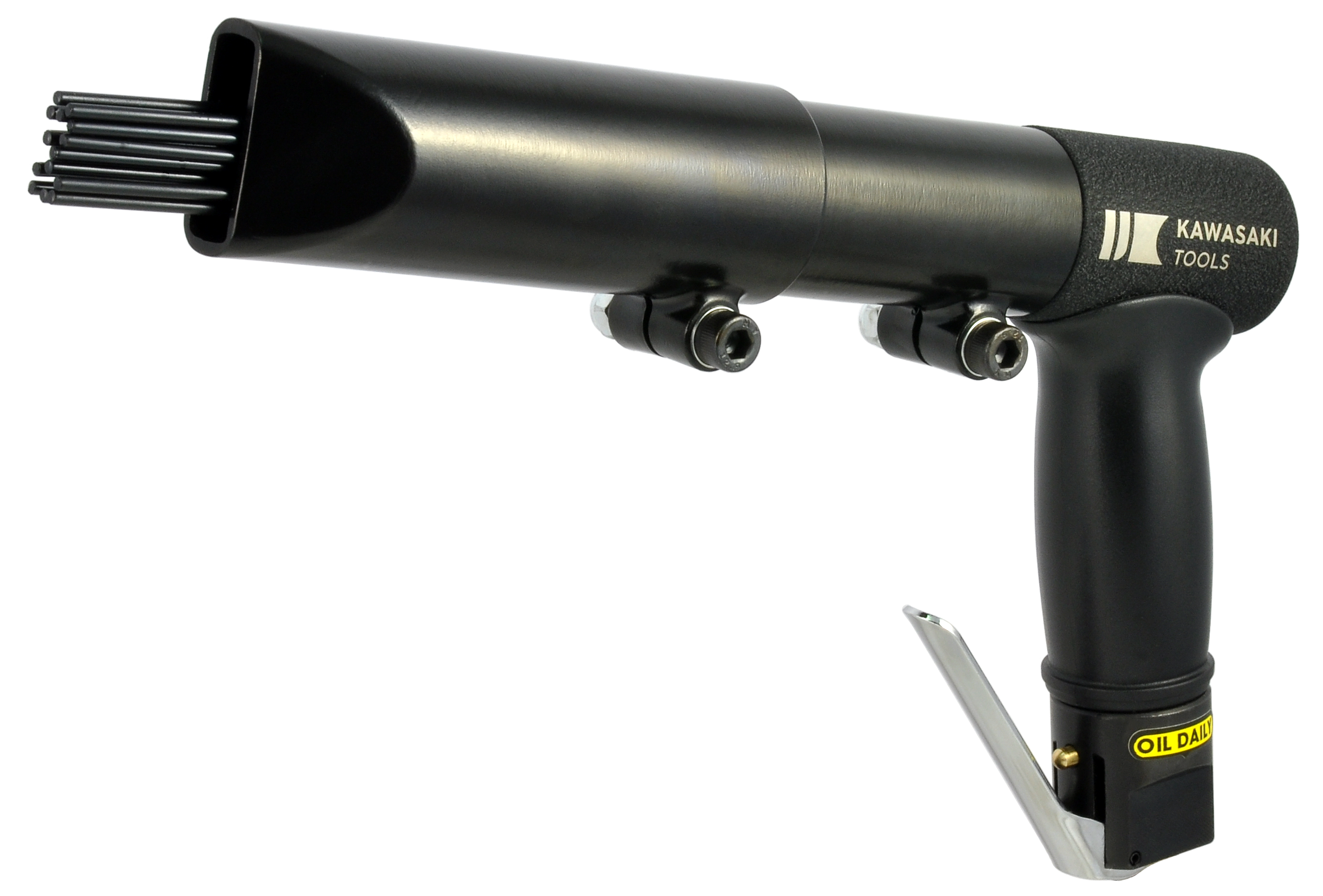

Needle Scaler (Self Adjustable Needle)
KPT-0110
Piston Dia
23mm
Piston Stroke
22mm
Blow/min.
3700bpn
length
330mm
Air Consumption
514l/min
Net Weight
2.7kg
Air Inlet
1/4"

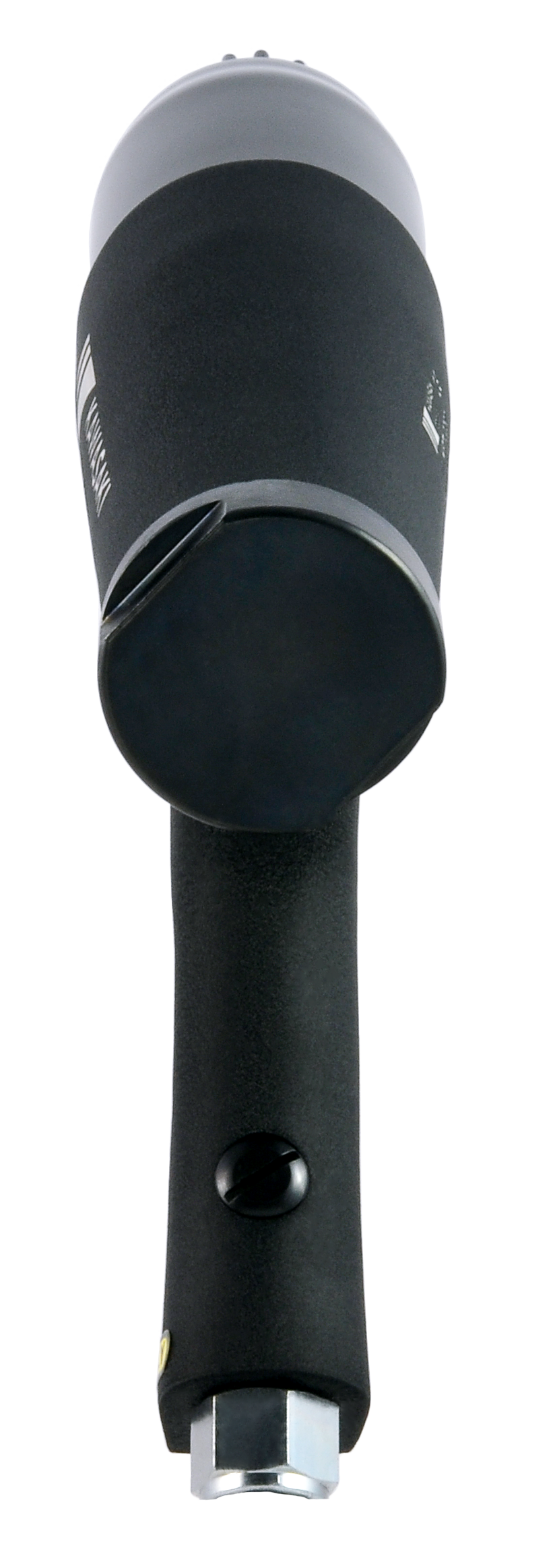

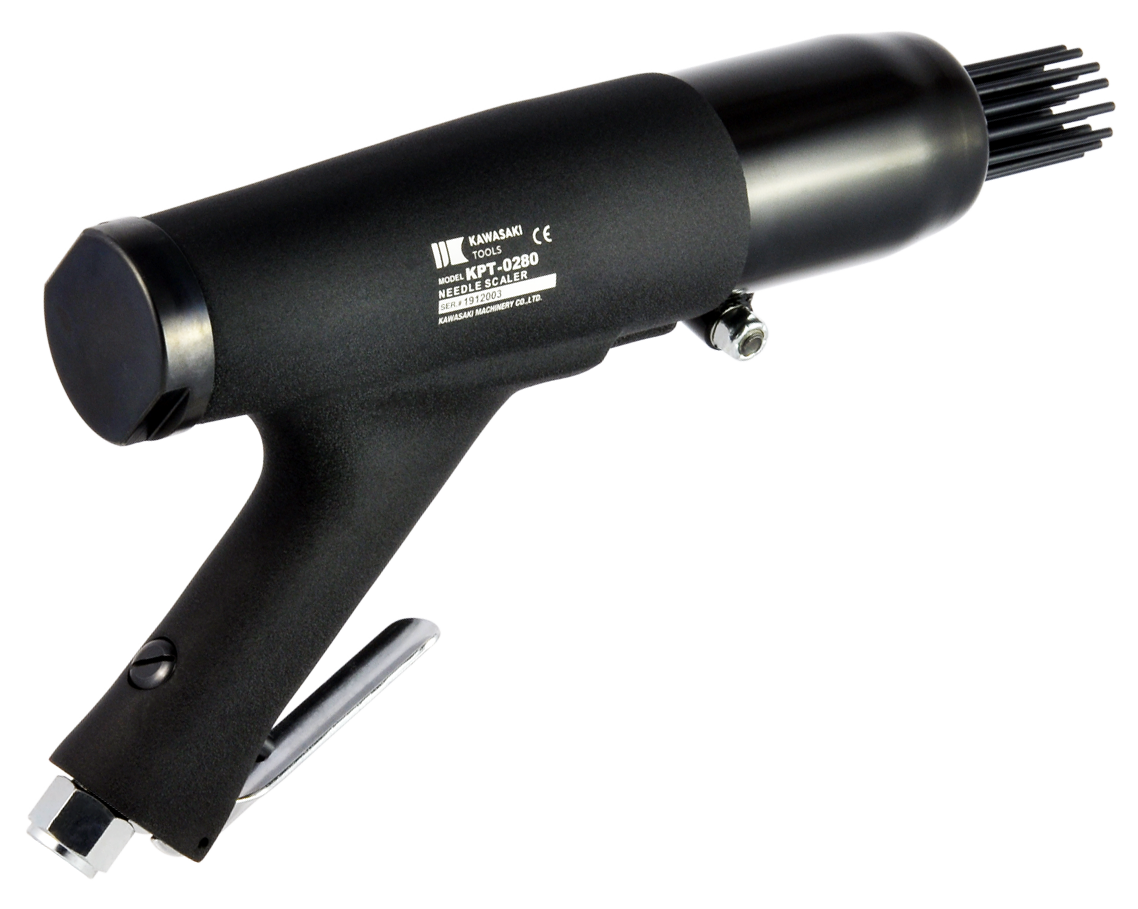

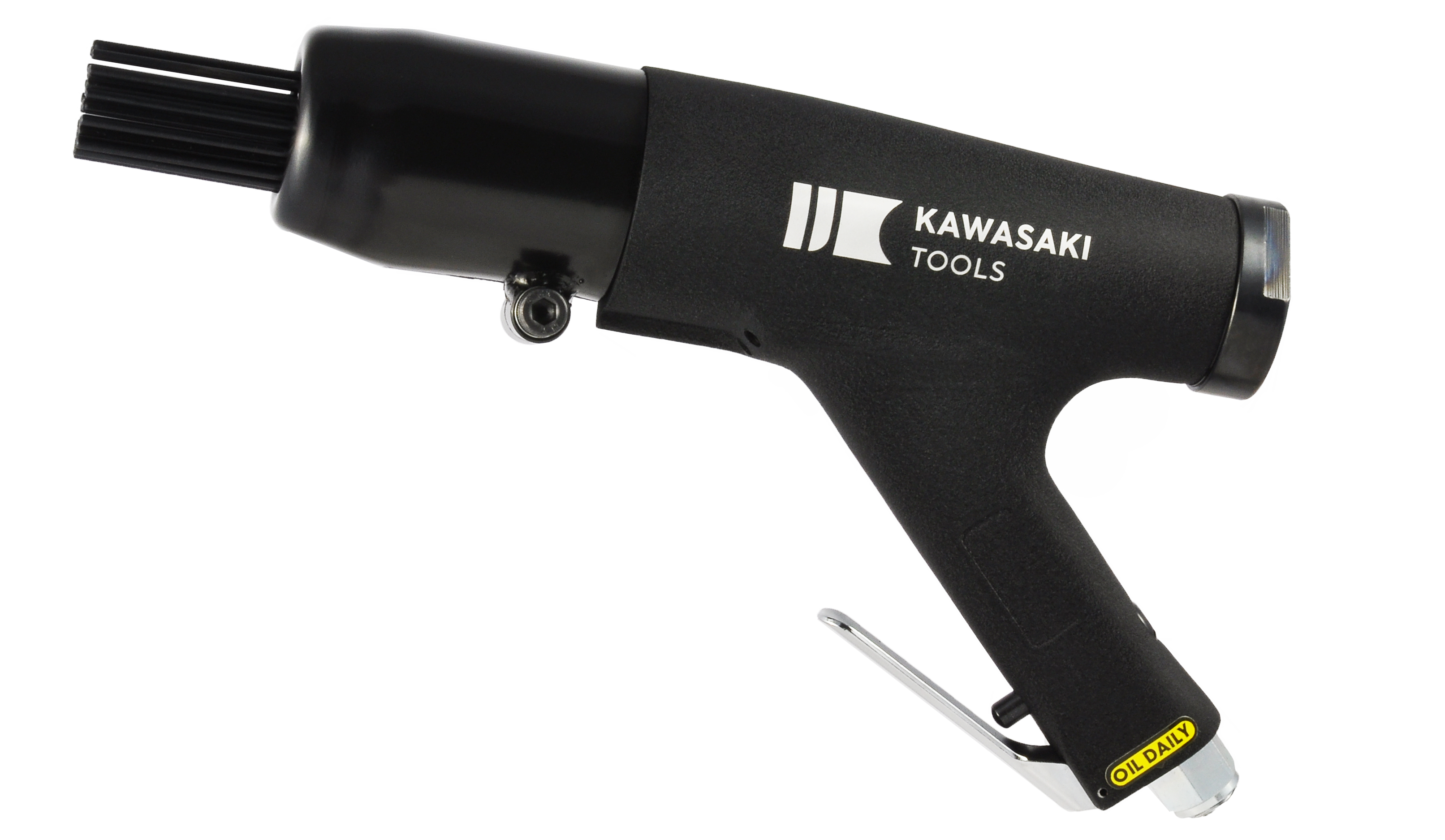

Needle Scaler
KPT-0280
Piston Dia
28mm
Piston Stroke
28mm
Blow/min.
3500bpm
length
350mm
Air Consumption
1285/min
Net Weight
3.6kg
Air Inlet
1/4"

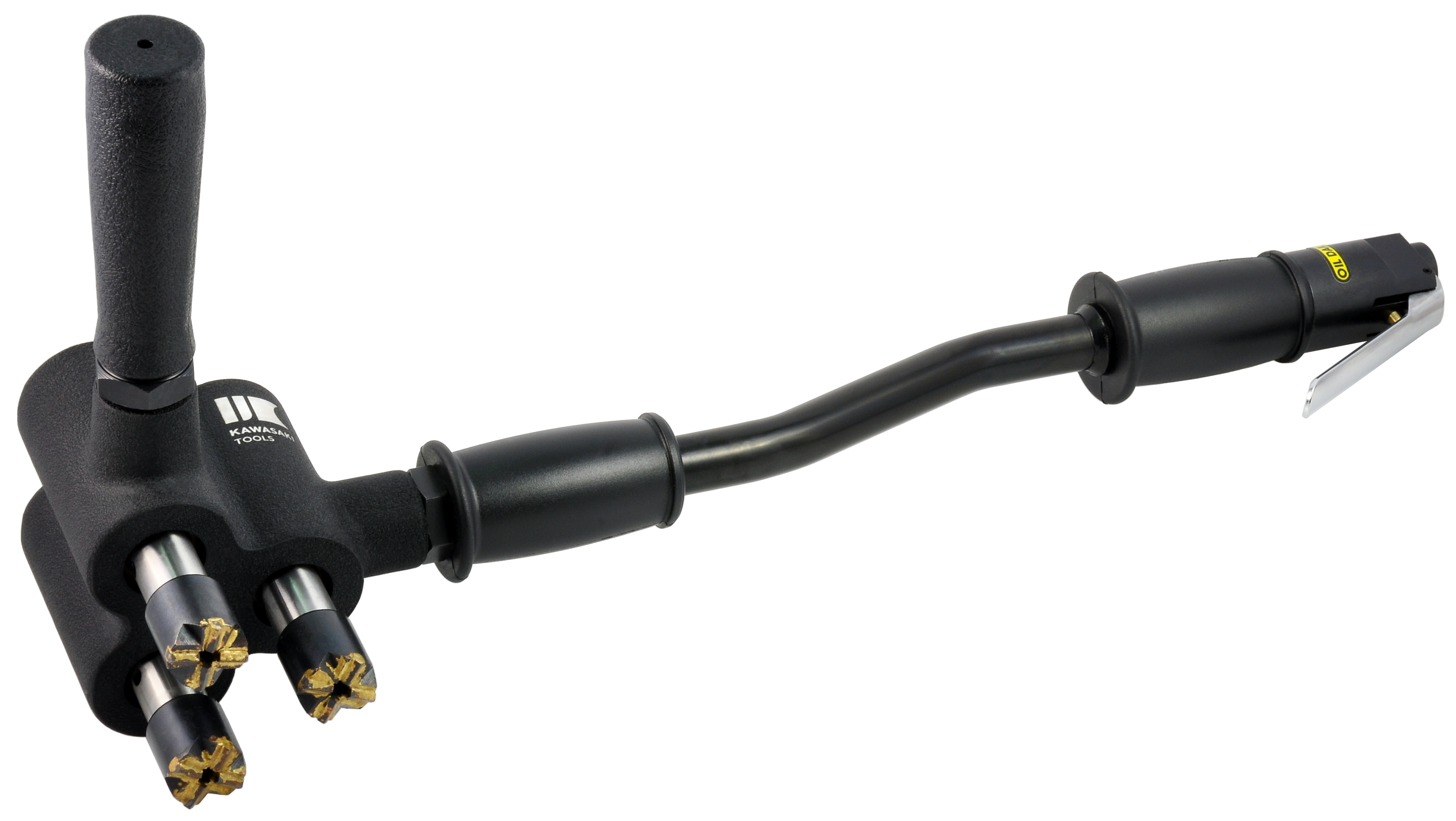

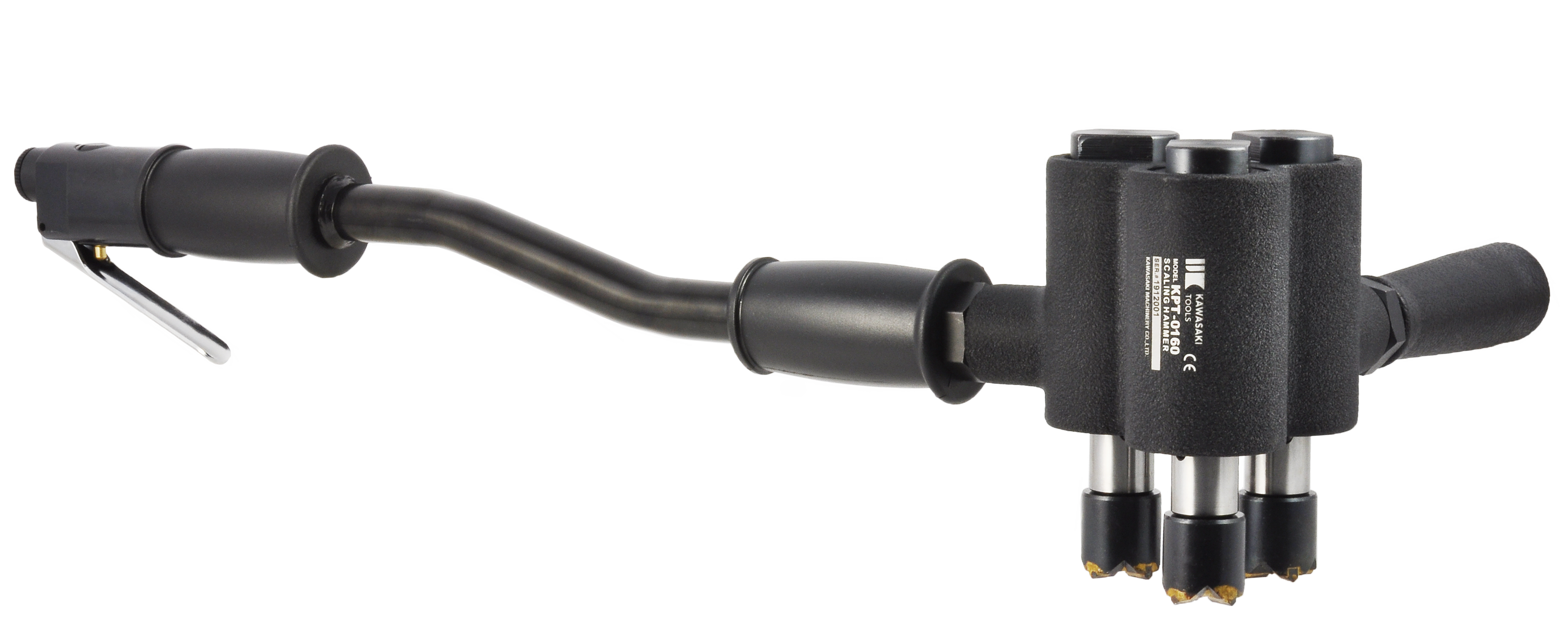

Scaling Hammer 3-Head
KPT-0160
Piston Dia
27mm
Piston Stroke
26mm
Blow/min.
3500bpm
length
550mm
Air Consumption
1366 l/min
Net Weight
3.6kg
Air Inlet
3/8"
